ISO 9237 Air Permeability Nonwoven Filter Media Testing
For filtration engineers and quality assurance teams sourcing nonwoven filter media, ISO 9237 air permeability testing is a foundational specification parameter that determines how well a fabric balances filtration efficiency against airflow resistance. ISO 9237 defines the standard method for measuring air permeability of textiles and nonwoven materials — a critical parameter for HVAC filtration, industrial dust collection, face mask filtration layers, and liquid filtration applications. Favourite Fab manufactures meltblown and spunbond nonwoven substrates across a range of air permeability specifications to meet the exacting requirements of industrial and medical filtration OEMs.
What ISO 9237 Measures and Why It Matters
ISO 9237 specifies the method for determining the air permeability of fabrics — defined as the volume of air that passes through a defined area of fabric per unit time at a specified differential pressure. The key parameters of the test are:
- Test area: Typically 20 cm² (standard) or 5 cm² (for coarser materials)
- Differential pressure: 100 Pa for most textiles; 200 Pa used for some technical applications
- Result unit: mm/s or l/m²/s at the specified pressure differential

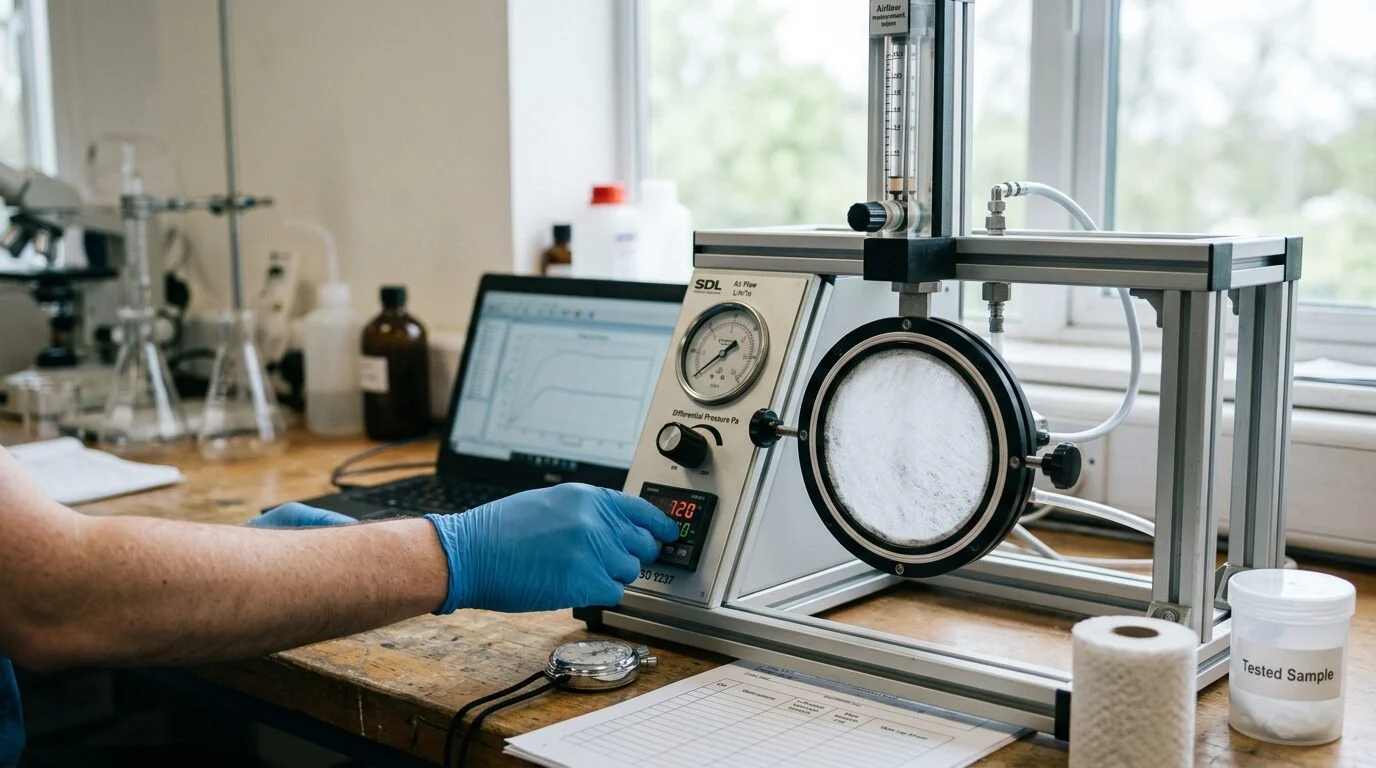

- Equipment: Air permeability tester (Frazier or equivalent) calibrated to ISO 9237 parameters
For nonwoven filter media, air permeability directly determines pressure drop across the filter element. High air permeability means lower pressure drop and lower energy consumption in HVAC and industrial filtration systems. Low air permeability typically correlates with higher filtration efficiency but increased resistance. Engineering the balance between these two properties is the core challenge of filter media design.
Air Permeability Specifications — Favourite Fab Filtration Nonwovens
Favourite Fab manufactures nonwoven filtration substrates across a broad range of air permeability values to cover diverse filtration applications:
| Fabric Type | GSM | Air Permeability (ISO 9237, 100 Pa) | BFE/PFE | Application |
|---|---|---|---|---|
| Meltblown MB-25 | 25 gsm | 150–250 mm/s | BFE ≥95% | Surgical mask inner layer, HVAC pre-filter |
| Meltblown MB-40 | 40 gsm | 80–150 mm/s | BFE ≥98% | Surgical mask filtration layer, fine dust filtration |
| Meltblown MB-50 | 50 gsm | 30–80 mm/s | BFE ≥99% | High efficiency filtration, liquid filtration |
| Spunbond SB-20 | 20 gsm | 400–600 mm/s | Pre-filtration only | Pre-filter layer, dust bag outer layer |
| Spunbond SB-50 | 50 gsm | 200–350 mm/s | Pre-filtration only | Industrial dust filtration, support layer |
| SMS Composite | 30–60 gsm | 100–300 mm/s | BFE ≥95% | Respiratory protection, medical face masks |
How Favourite Fab Tests Air Permeability in Production
Consistent air permeability is essential for filtration nonwovens that must meet specified pressure drop and efficiency parameters. Our in-process quality control approach includes:
- In-line production monitoring for GSM and porosity consistency across roll width
- Final roll testing to ISO 9237 protocol, with test data recorded per production lot
- Statistical process control on air permeability measurements to detect production drift
- Test reports provided per lot for B2B buyers requiring documented specifications
- Third-party laboratory verification available on request for critical applications
Air Permeability in Specific Filtration Applications
Different filtration applications place different demands on air permeability specifications. Common application requirements include:
- HVAC filtration (EN 779 / ISO 16890): Air permeability must be matched to system design pressure drop requirements; typically higher permeability (200–500 mm/s) for MERV 8–10 grades
- Industrial dust bags (EN 13779): Moderate air permeability (100–300 mm/s) with pulse-jet cleanability
- Medical face masks (EN 14683, ASTM F2100): Low differential pressure (ΔP <5.0 mm H₂O/cm²) while maintaining BFE ≥98%
- Liquid filtration: Air permeability in ISO 9237 terms correlates with liquid flow rate through the filter; critical for sizing filter elements
Frequently Asked Questions
Is ISO 9237 the same as ISO 9073-15 for nonwovens?
ISO 9237 is the general air permeability standard for textiles, including nonwovens. ISO 9073-15 is specifically for nonwovens and uses slightly different apparatus and test conditions. For most commercial purposes, ISO 9237 is the primary reference. Buyers should specify which standard applies in their procurement documents. Favourite Fab can test and report to either standard on request.
What factors affect air permeability in meltblown nonwoven?
The primary factors controlling air permeability in meltblown nonwoven are fiber diameter, GSM (basis weight), and degree of fiber packing (bonding density). Finer fibers at higher GSM produce lower air permeability and higher filtration efficiency. Electrostatic charge enhances filtration efficiency without significantly reducing air permeability — making electret meltblown highly efficient relative to its pressure drop.
Can you supply filter media with a specific target air permeability value?
Yes. For OEM and industrial filtration applications with a defined air permeability specification, we can produce meltblown or spunbond nonwoven to a target air permeability within our production capability range. Provide your target value, test standard, and application requirements to our technical sales team for a feasibility assessment and quotation.
Do you supply nonwoven filter media for liquid filtration applications?
Yes. Our meltblown grades are used in liquid filtration bags, cartridge filters, and depth filtration applications. Liquid filtration requires additional consideration of chemical compatibility, wet strength, and liquid flow resistance. Contact our technical team with your liquid filtration application details for a matched product recommendation.
Source Specified Air Permeability Filtration Nonwoven from Favourite Fab
For filtration engineers and QA teams who need nonwoven filter media with defined ISO 9237 air permeability performance, Favourite Fab offers manufacturer-direct supply with documented test data, consistent lot quality, and the technical support to match substrate to application. Request specification sheets and samples from our B2B filtration team today.
